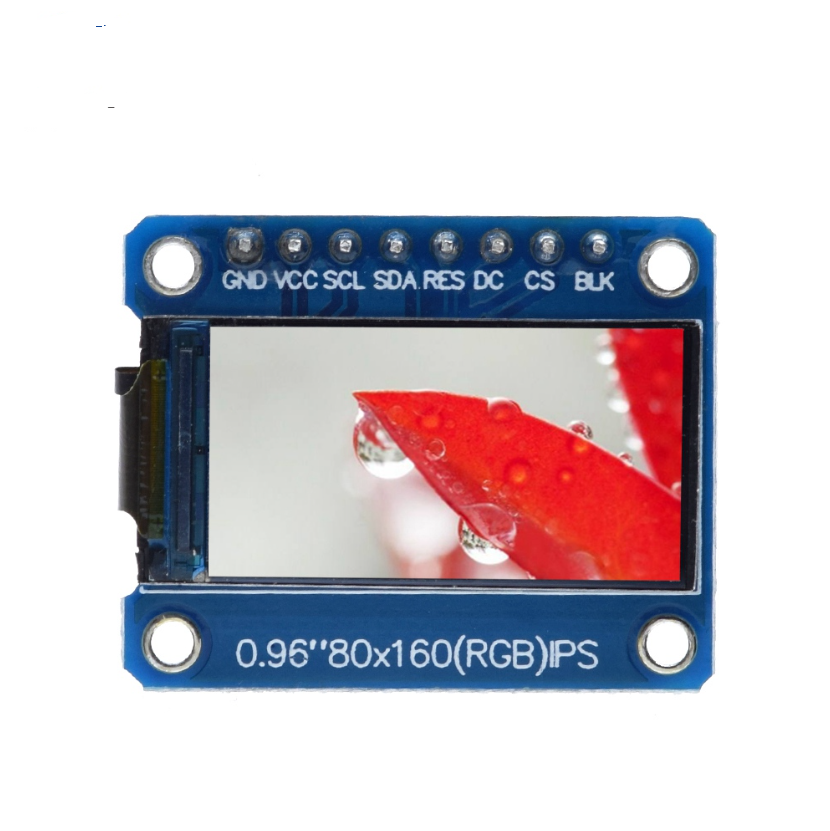

0.96 Inch IPS LCD Display Module 80x160 RGB 65K Color SPI ST7735S
0.96 Inch IPS LCD Display Module 80x160 RGB 65K Color SPI ST7735S
SKU: CT-0195
1 in stock
- Powered by ST7735S Driver IC for reliable, high-quality color rendering
- Vivid IPS panel with full viewing angle and 65K RGB color support
- Ultra-compact 0.96" screen with sharp 80 x 160 pixel resolution
- Simple 4-line SPI interface — easy integration with Arduino, ESP32, STM32 and more
- Low power consumption with adjustable backlight control (3.3V logic)
Couldn't load pickup availability
Get it before .
B2B customers can avail ₹28.98 ITC on this product.
Free Shipping over ₹1299.
- Safe Handling
- Faster Shipping
- Easy Return
The 0.96" IPS TFT LCD Display Module is a compact, full-color screen driven by the ST7735S controller IC. With a resolution of 80x160 pixels and true IPS panel technology, it delivers vibrant 65K colors and a full viewing angle with no color distortion. It communicates via a 4-line SPI interface, requiring only a few GPIO pins, making it easy to integrate with virtually any microcontroller including Arduino, STM32, ESP32, Raspberry Pi, and more.
Features:
- ST7735S Driver IC
- IPS panel — full viewing angle, no color distortion
- 65K RGB color display
- 4-line SPI interface — minimal GPIO required
- Input Voltage: 3.3V
- Resolution: 80 x 160 Pixels
- Built-in backlight control
- Compatible with Arduino, STM32, ESP32, Raspberry Pi, 8051, PIC, AVR, ARM
Applications:
- Wearable devices
- Embedded systems and IoT projects
- Handheld instruments
- Industrial and security equipment
- MP3 / media players
- Smart home displays
Pin Definition:
| Pin | Name | Description |
|---|---|---|
| 1 | GND | Power ground |
| 2 | VCC | Power supply positive (3.3V) |
| 3 | SCL | SPI bus clock signal |
| 4 | SDA | SPI bus write data signal |
| 5 | RES | Reset control signal (active low) |
| 6 | DC | Register/data selection (Low: register, High: data) |
| 7 | CS | Chip select, active low |
| 8 | BLK | Backlight control (High: on; connect to 3.3V if control not needed) |
| Display Type | IPS TFT LCD |
| Driver IC | ST7735S |
| Resolution | 80 x 160 Pixels |
| Display Color | RGB 65K Colors |
| Screen Size | 0.96 inch |
| Active Area (AA) | 10.80 x 21.70 mm |

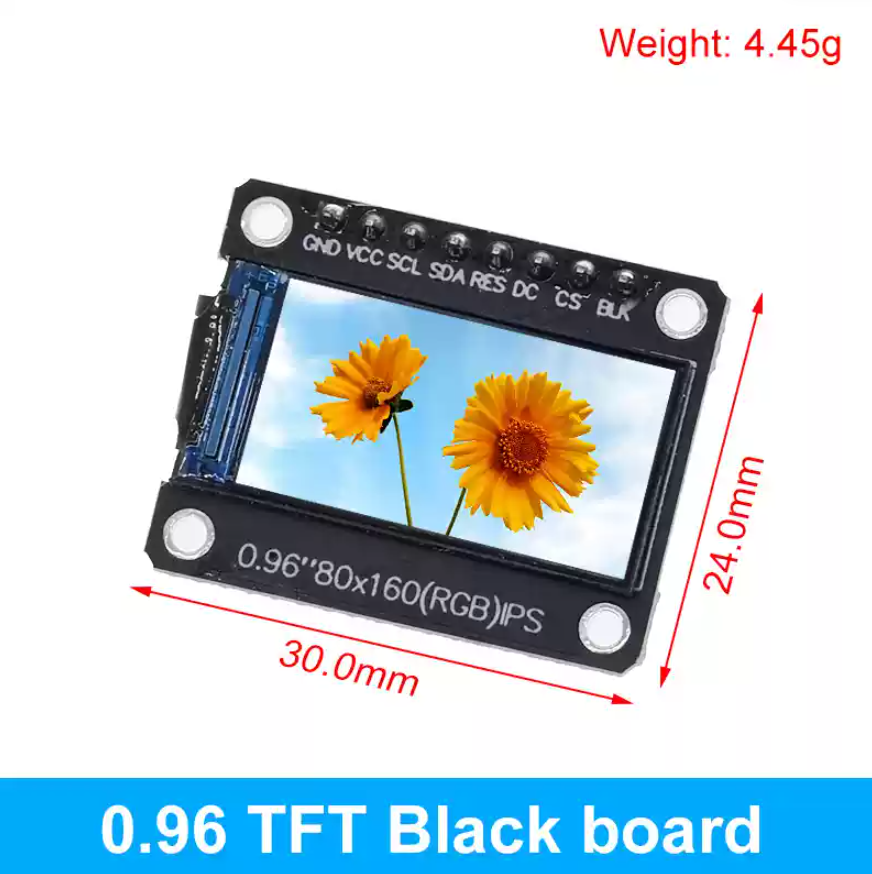

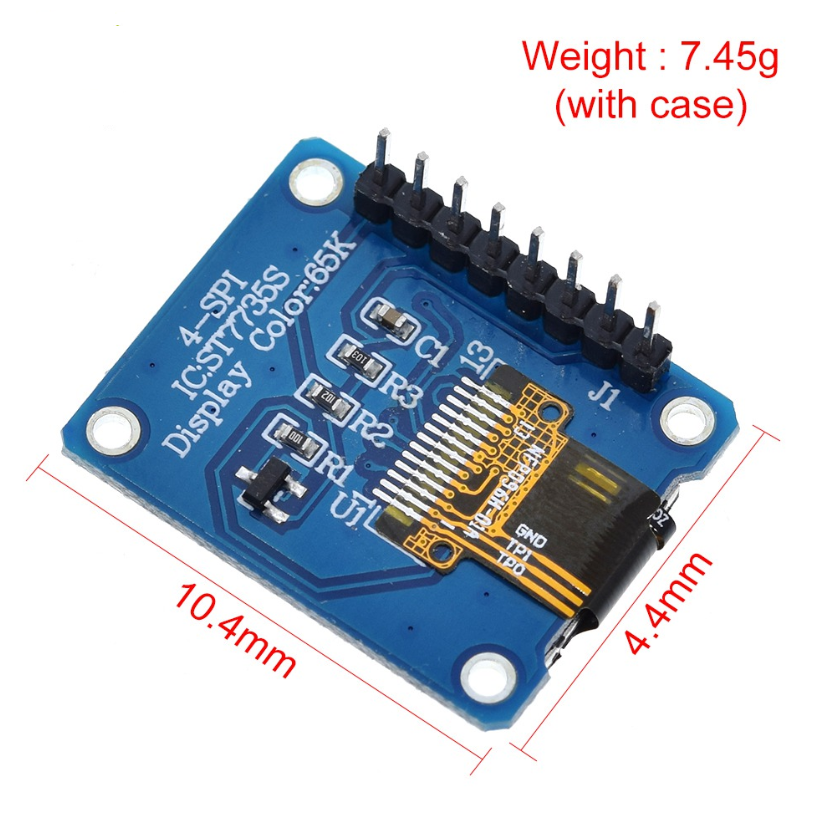

| PCB Size | 30.00 x 24.04 mm |
| Interface | 4-line SPI |
| Input Voltage | 3.3V |
| Luminance | 380 cd/m² |
| LED Current | 23.4 mA |
| Power Consumption | 0.13W |
| Viewing Angle | Full Angle (IPS) |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +80°C |
| Product Weight | 8 grams |
0.96" IPS TFT LCD Display Module (ST7735S)
Please refer to the pin definition table in the Description tab for wiring details. Connect VCC and GND to 3.3V and ground respectively. SCL, SDA, RES, DC, and CS connect to your microcontroller's SPI and GPIO pins. BLK connects to 3.3V to keep the backlight on, or to a GPIO pin for software control.
Country of origin: China
Note: This module operates at 3.3V only. If using with a 5V microcontroller such as Arduino UNO, a logic level converter is required to avoid damaging the display.
