MPU6500 6-Axis Gyroscope + Accelerometer IMU Sensor Module (I2C / SPI)

The MPU-6500 is a high-performance 6-axis motion tracking sensor that combines a 3-axis gyroscope and a 3-axis accelerometer in a single compact package. Designed by InvenSense, the MPU-6500 delivers precise motion sensing and orientation detection for embedded applications.

Note: This module includes the MPU6500 6-axis IMU sensor with built-in gyroscope and accelerometer for accurate motion tracking and orientation measurement.

Perfect for: Drones, robotics, self-balancing robots, motion sensing projects, and stabilization systems.

The MPU-6500 features integrated 16-bit ADCs for each axis, allowing simultaneous sampling of gyroscope and accelerometer data. It also includes a Digital Motion Processor™ (DMP) that can perform complex motion processing algorithms directly on the sensor.

Unlike older IMU sensors, the MPU-6500 supports both high-speed SPI and I2C communication interfaces, making it suitable for high-performance microcontroller platforms such as Arduino, STM32, ESP32, Raspberry Pi, and other embedded systems.

With its compact size, low power consumption, and accurate motion sensing capabilities, the MPU-6500 is widely used in drones, robotics, gaming controllers, and motion-controlled applications.

Features:

• Integrated 6-axis motion tracking (3-axis gyroscope + 3-axis accelerometer)
• Embedded Digital Motion Processor™ (DMP)
• Built-in 16-bit ADCs for accelerometer and gyroscope
• User-programmable gyroscope and accelerometer ranges
• FIFO buffer to reduce system processor load
• Supports both I2C and SPI communication interfaces
• Low power consumption suitable for battery powered devices
• Built-in temperature sensor

Compatible With:

• Arduino (Uno, Nano, Mega)
• ESP32
• STM32 Microcontrollers
• Raspberry Pi
• PIC Microcontrollers
• ARM Development Boards

Applications:

1. Drone flight stabilization
2. Robotics motion tracking
3. Self-balancing robots
4. Gesture recognition systems
5. Camera stabilization platforms
6. Wearable motion sensing devices

Country of origin : China

Note: The pins are Unsoldered but the Header pins are provided separately in the package.

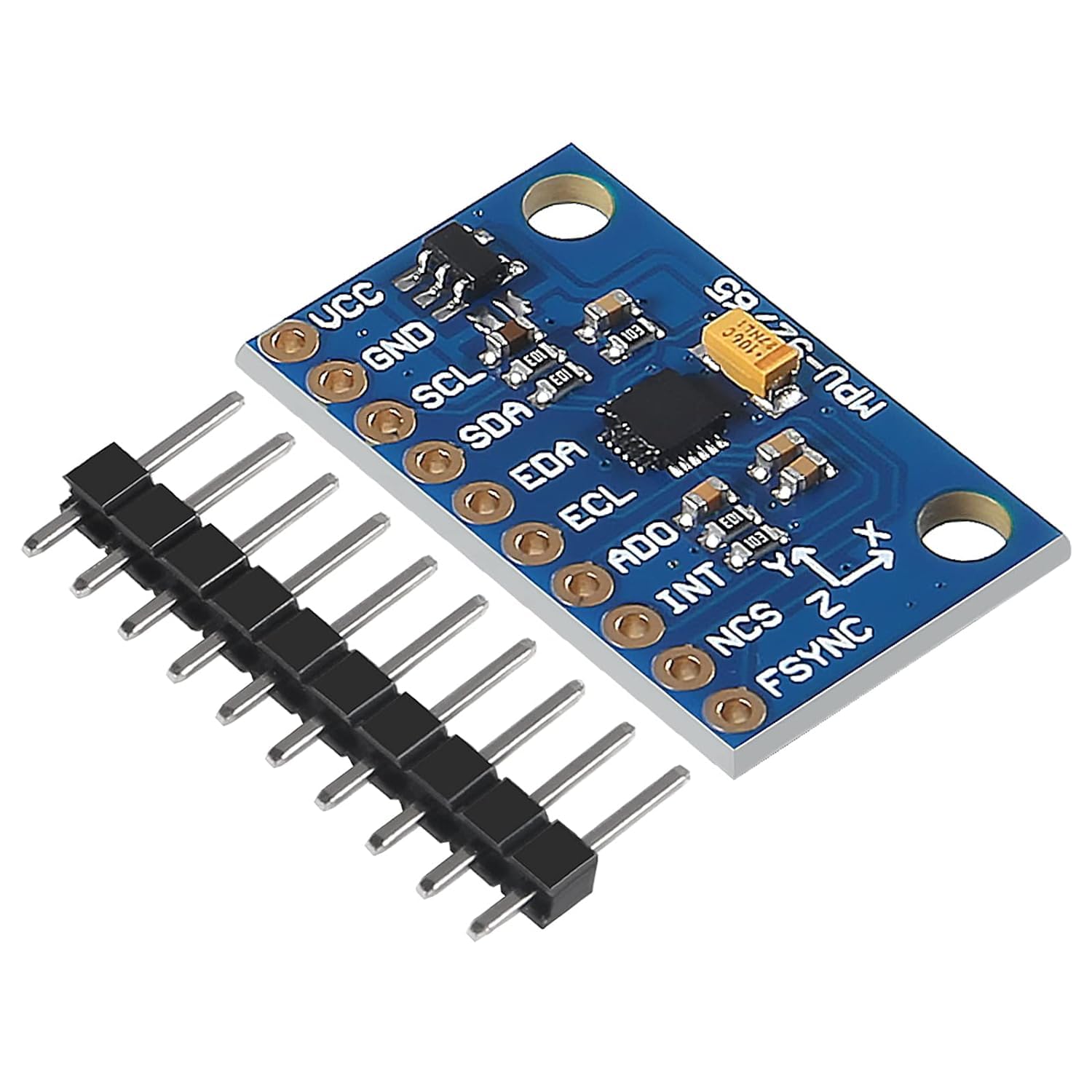

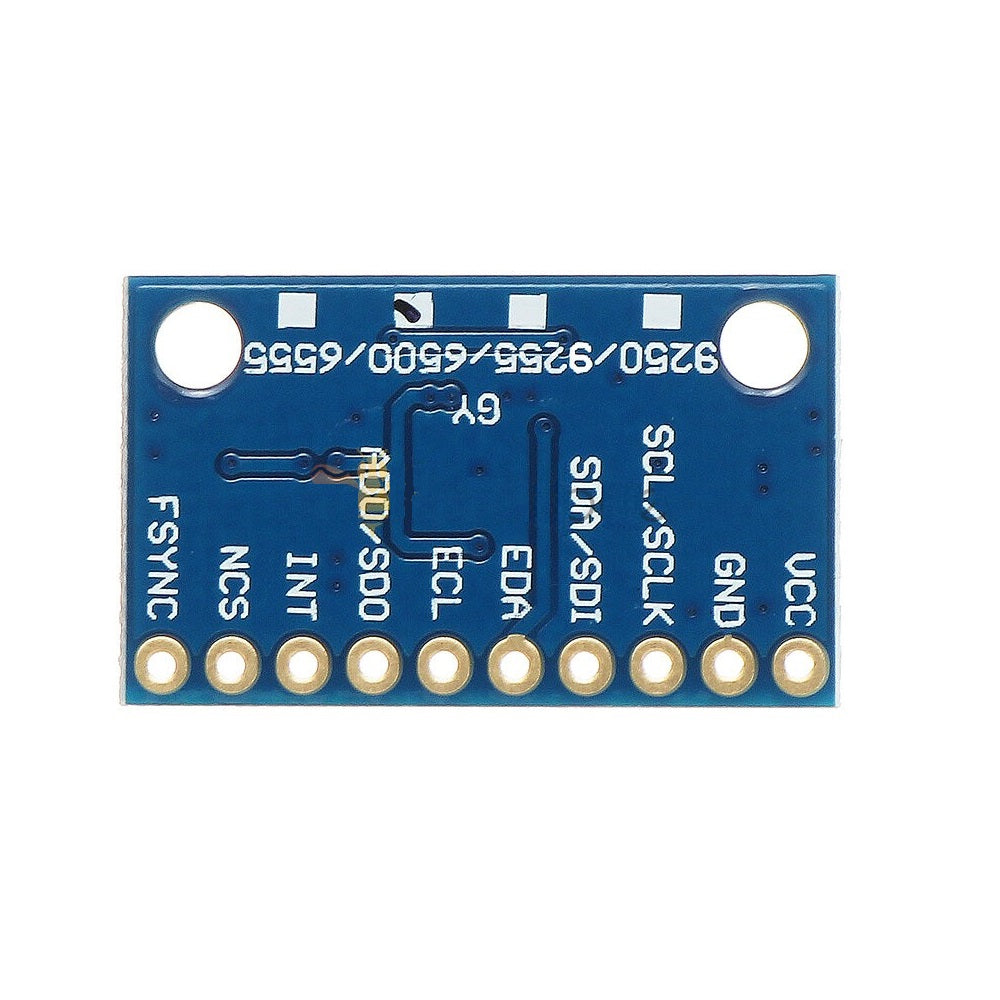

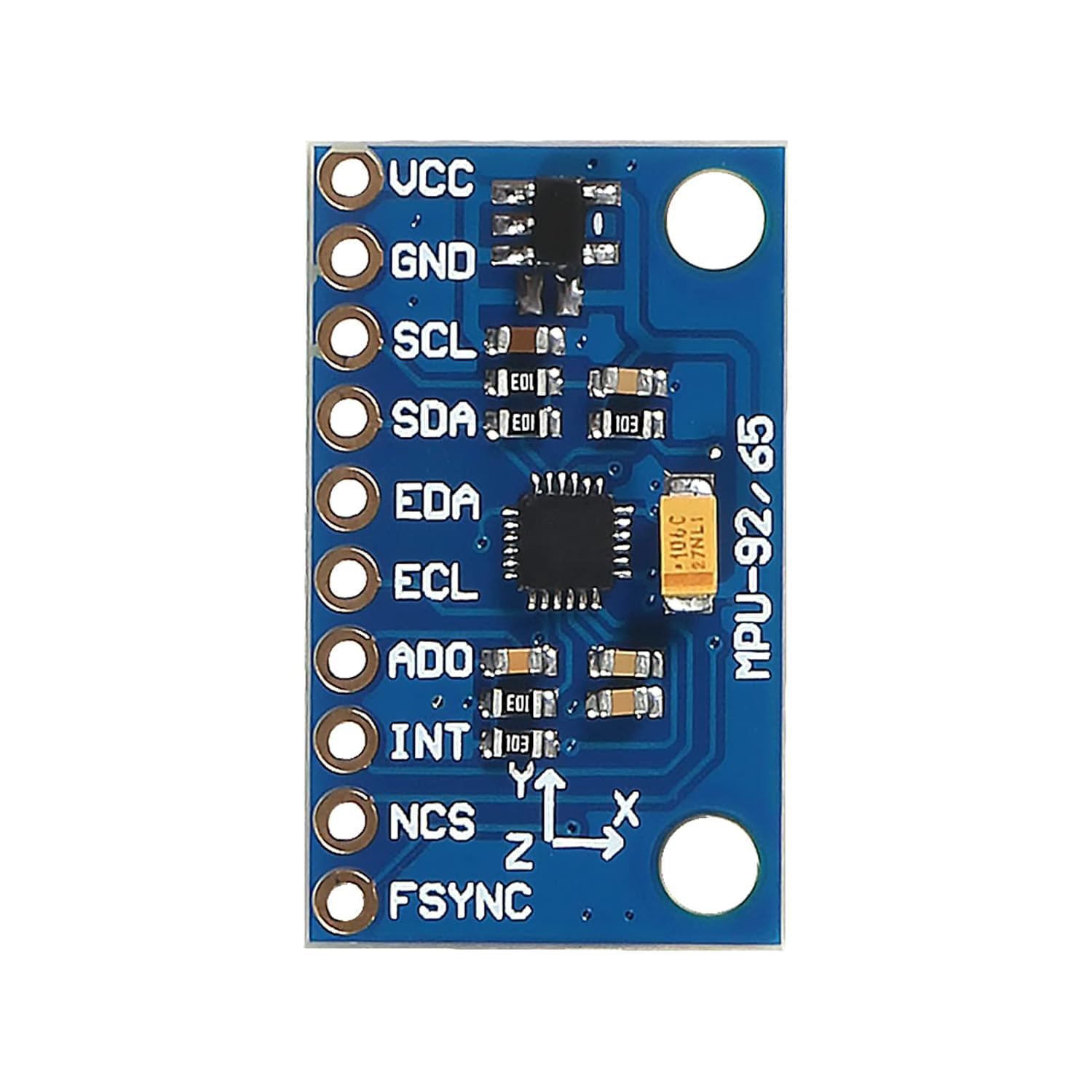

MPU6500 sensor module

8-pin Male-Male Header
