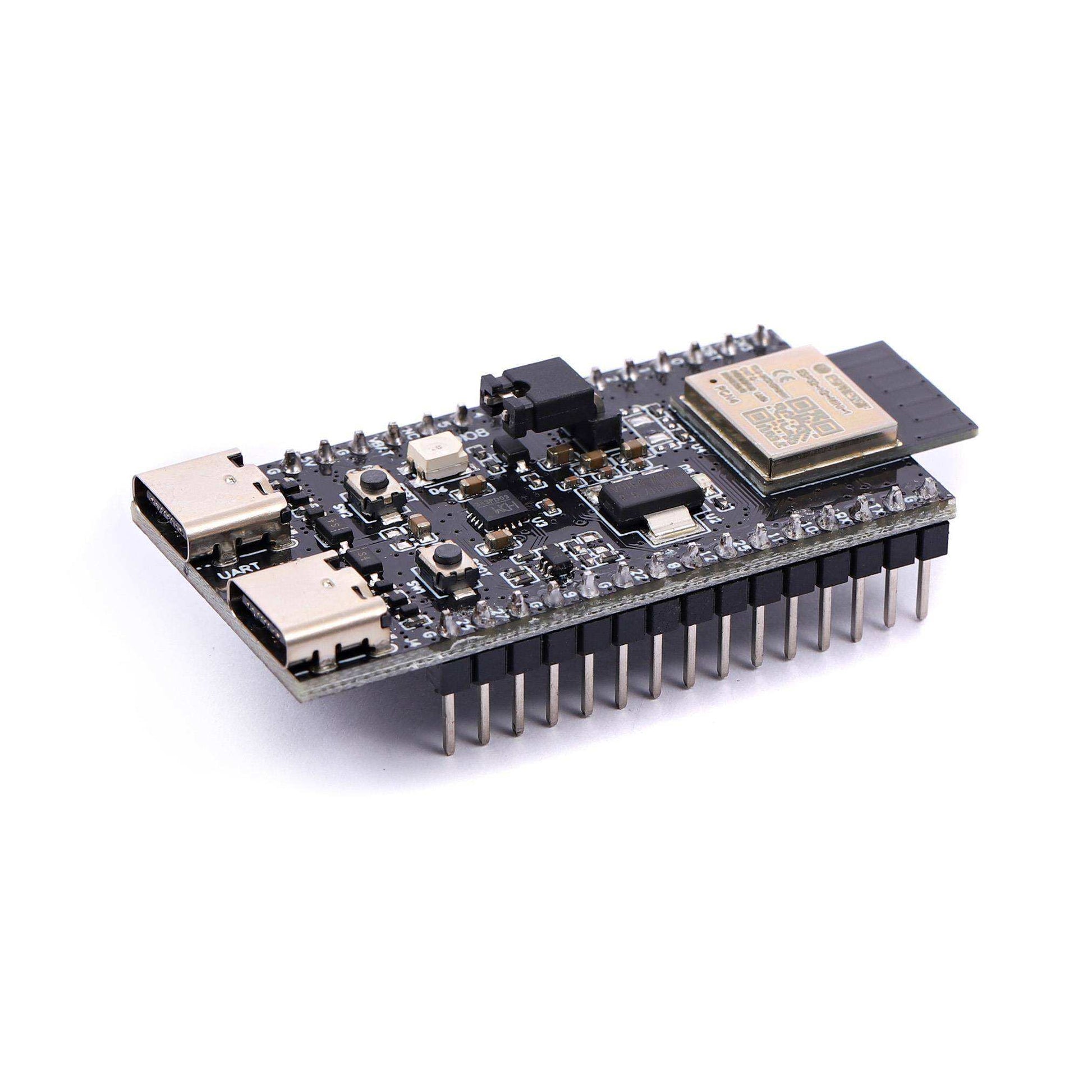

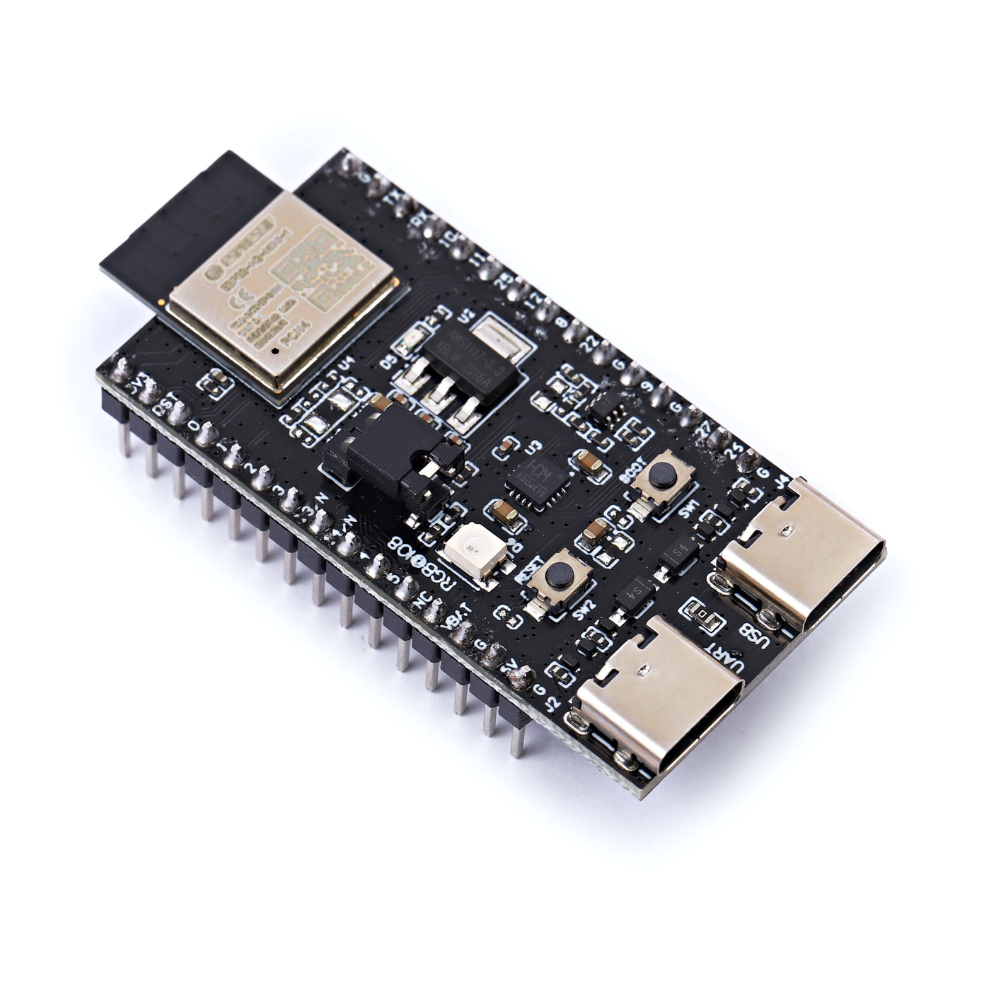

ESP32-H2 DevKitM-1-N4 Development Board | Bluetooth LE 5.2 | Zigbee | Thread | Matter

The ESP32-H2 DevKitM-1-N4 is an entry-level development board designed for low-power IoT and Matter-enabled applications. Powered by the ESP32-H2-MINI-1 module, it features a 32-bit RISC-V processor and supports Bluetooth® Low Energy 5.3 and IEEE 802.15.4 wireless connectivity, making it ideal for Zigbee, Thread, and Matter networks. The board provides easy access to the ESP32-H2 GPIOs through standard pin headers, allowing developers to quickly prototype and evaluate wireless embedded applications.

Features:

• Bluetooth LE & IEEE 802.15.4 Connectivity: Supports Bluetooth® Low Energy 5.3 along with IEEE 802.15.4 for Zigbee 3.0, Thread 1.3, and Matter applications.
• RISC-V Processor: 32-bit single-core RISC-V microcontroller operating at up to 96 MHz.
• Memory: Equipped with 320 KB SRAM, 128 KB ROM, and 4 MB onboard SPI Flash (N4 variant).
• Rich Peripheral Set:
  • GPIO, SPI, I2C, UART, I2S
  • 12-bit ADC
  • LED PWM Controller
  • General-purpose Timers
  • Temperature Sensor
  • DMA Controller
  • TWAI® (CAN 2.0 compatible)
• Advanced Security: Hardware cryptographic acceleration including AES-128/256, SHA, RSA, ECC, HMAC, Digital Signature, Secure Boot and Flash Encryption.

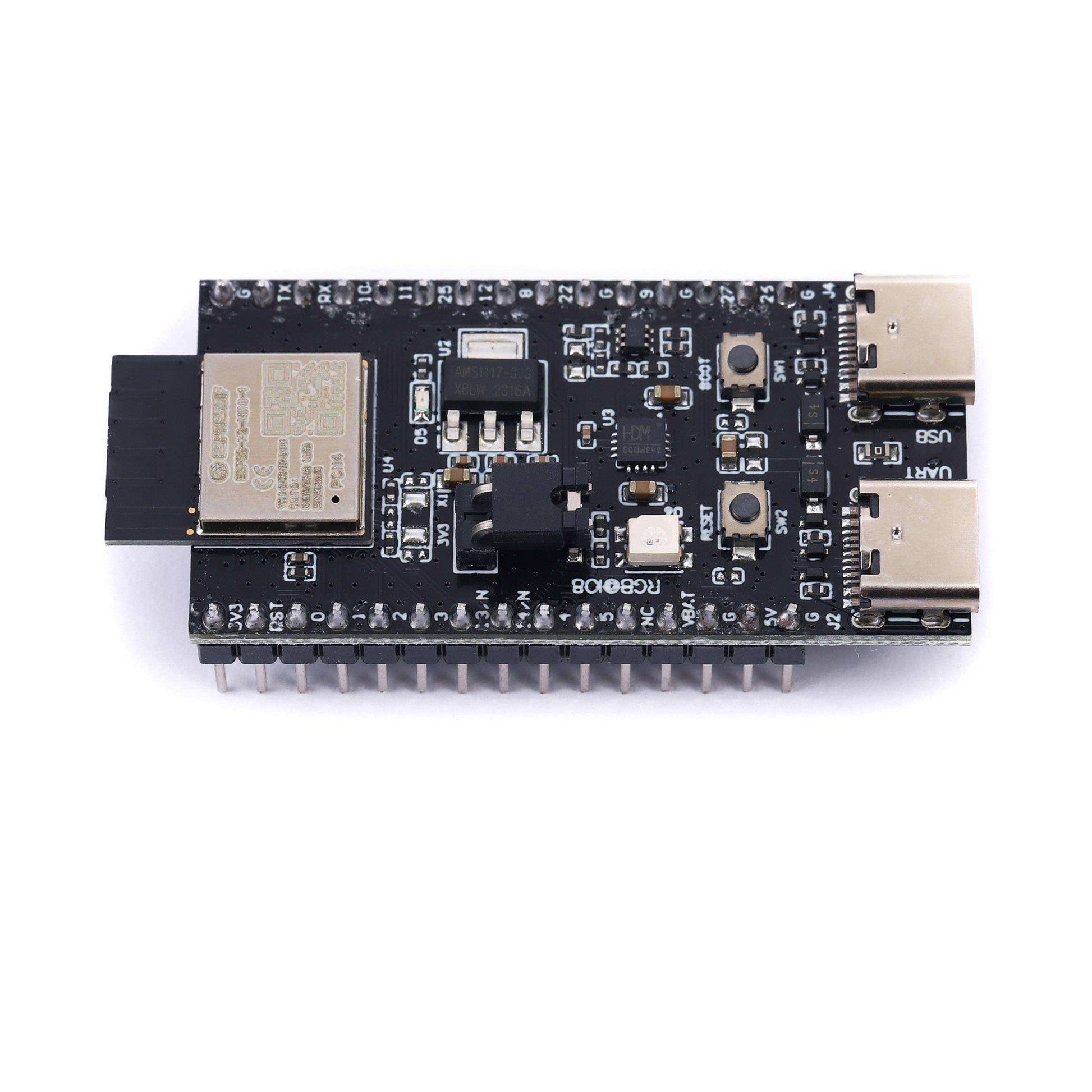

• Dual USB Type-C Ports: Dedicated USB Type-C connectors for native USB (USB Serial/JTAG) and USB-to-UART, providing flexible options for programming, debugging, and serial communication.
• Low Power Design: Optimized for battery-powered IoT devices with multiple sleep modes and ultra-low power consumption.

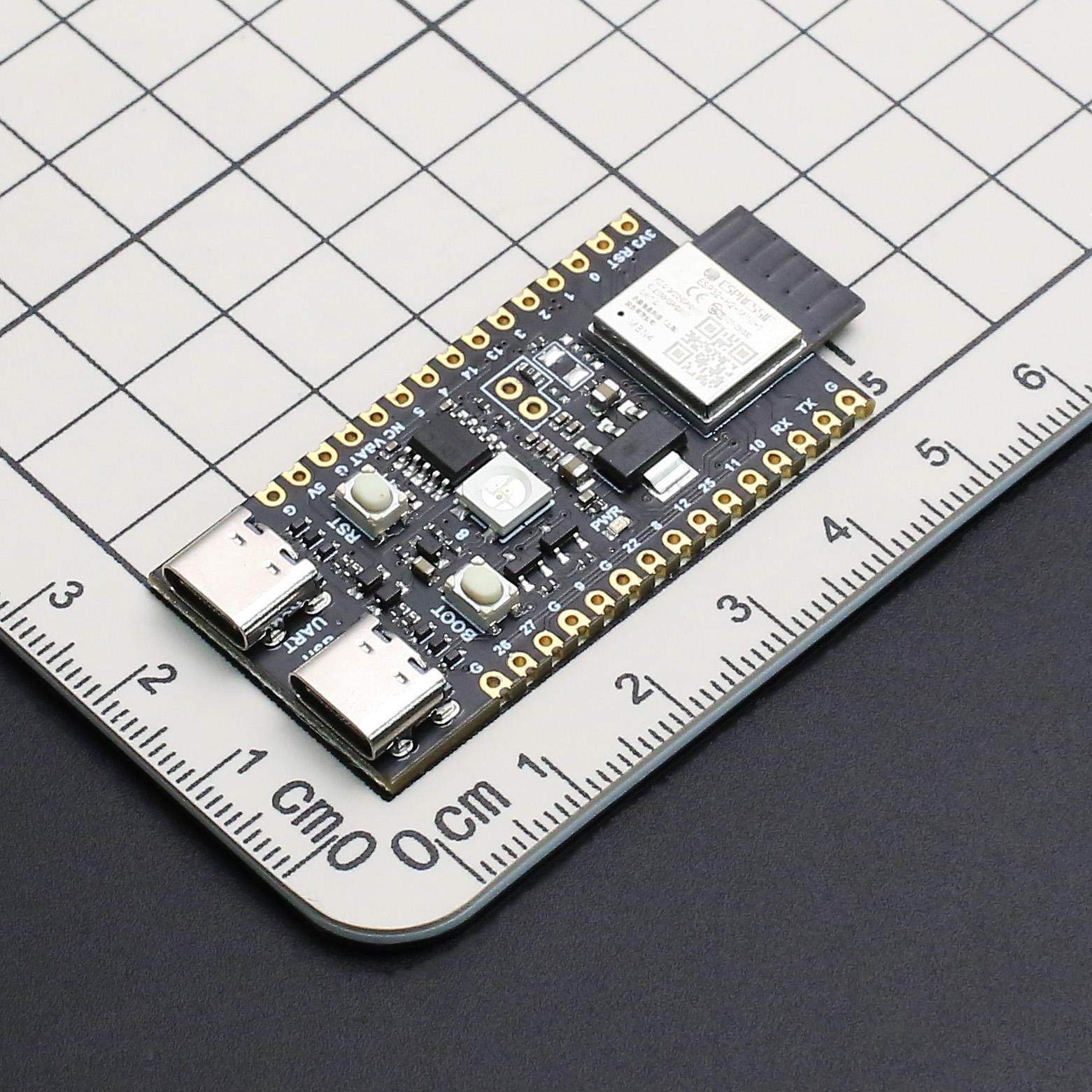

• Compact Development Board: Breadboard-friendly layout with all essential GPIOs easily accessible.
• Wide Operating Temperature: Suitable for operation from -40°C to +85°C.

Applications:

1. Smart Home & Matter Devices
   • Matter-compatible smart devices
   • Thread Border Router development
   • Zigbee gateways and sensors
2. Wireless IoT Applications
   • Battery-powered wireless sensors
   • Industrial monitoring systems
   • Environmental data logging
3. Embedded Systems Development
   • ESP-IDF application development
   • Zigbee and Thread product prototyping
   • Bluetooth LE beacon and mesh applications

1x ESP32-H2 DevKitM-1-N4 Development Board

Country of origin : China

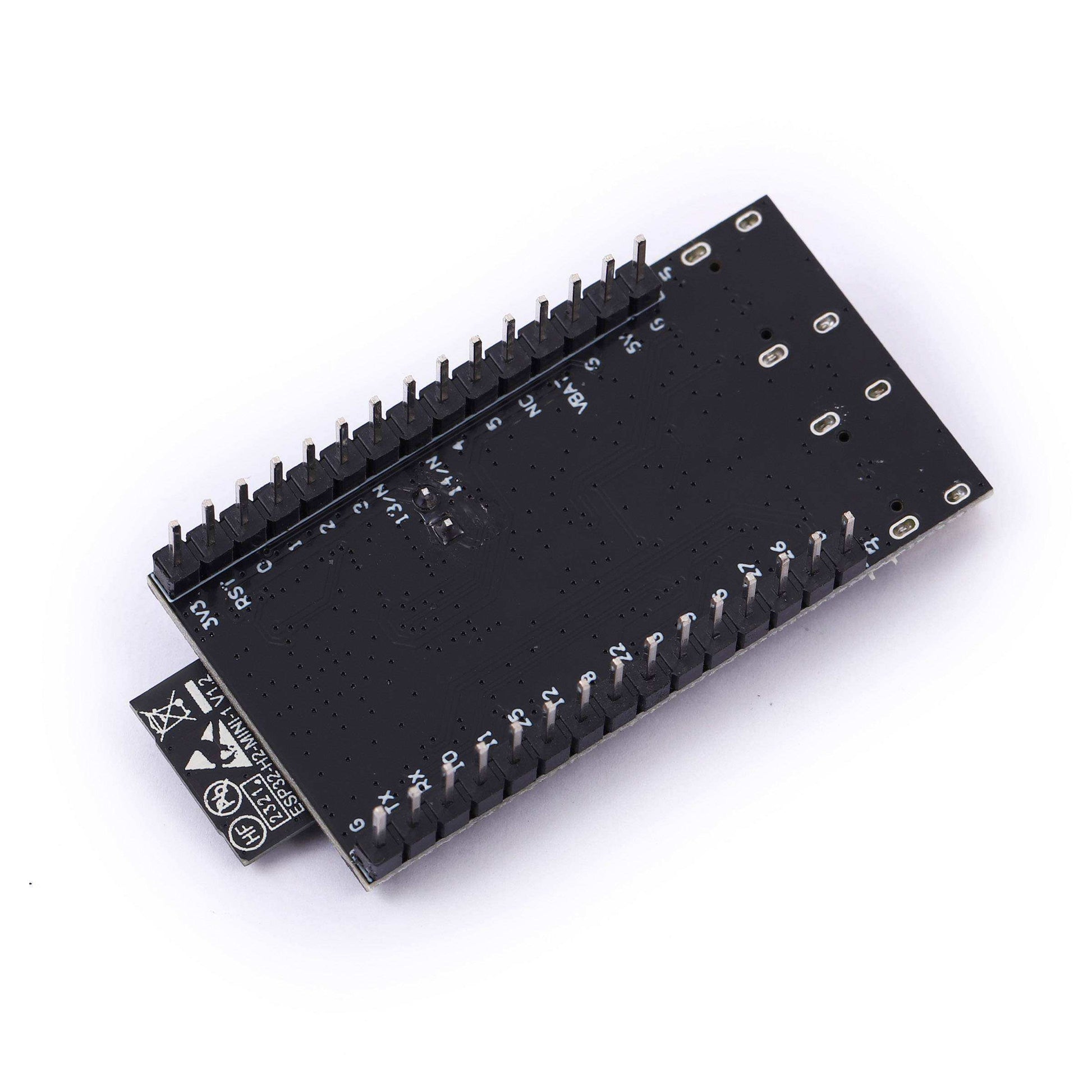

The Header Pins are already soldered on the board.

HSN Code: 85177090
