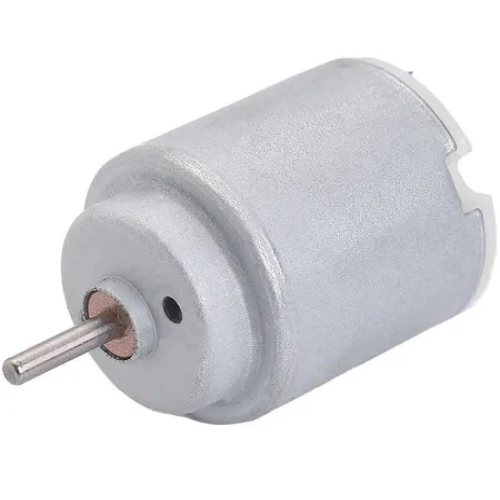

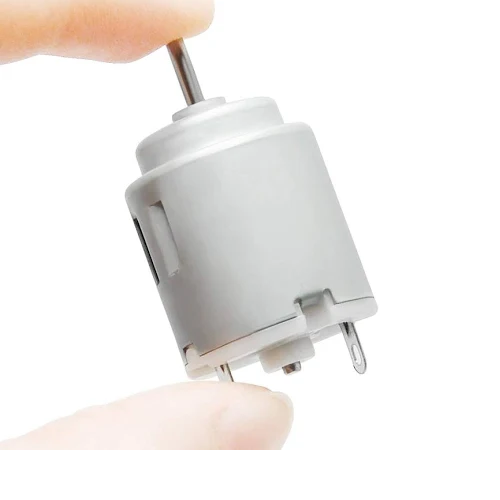

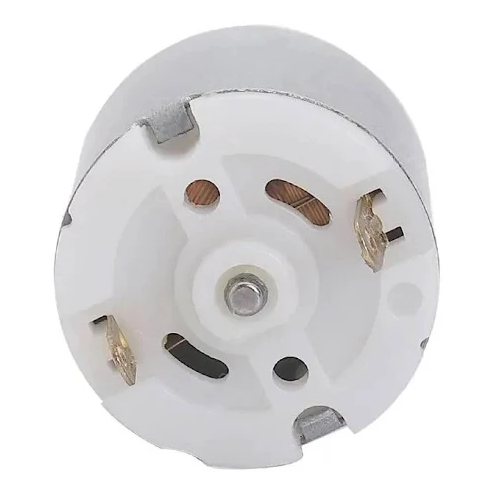

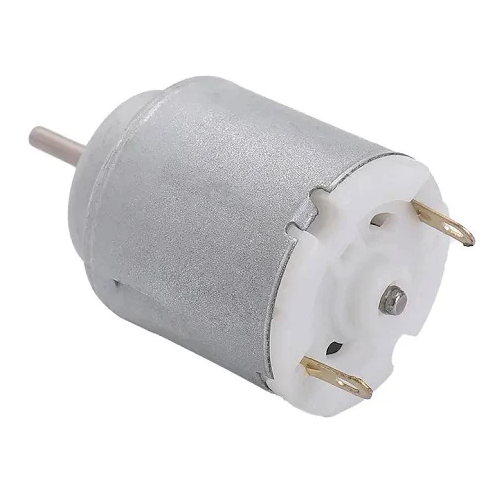

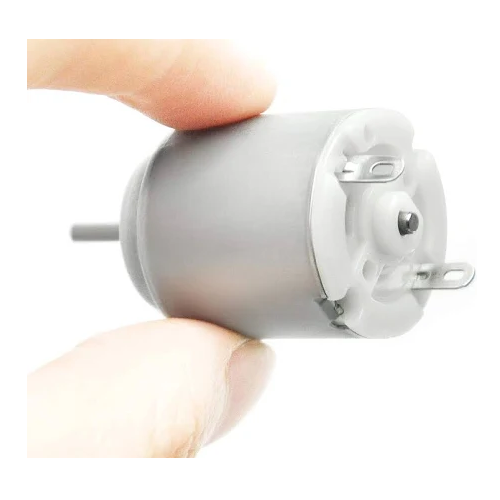

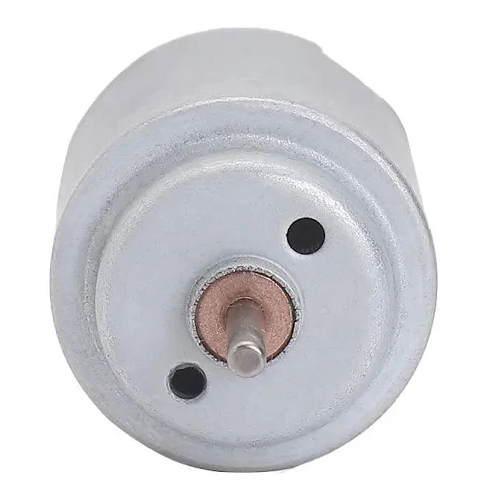

R140 3-6V DC MOTOR
R140 3-6V DC MOTOR
SKU: CT-0075
Regular price
₹22.00
Regular price
Sale price
₹22.00
Unit price
per
4 in stock
- Operating Voltage: 3V - 6VDC
- RPM: 2650 @3V, 5000 @6V
- Free running current: 0.04A
- Stall current: 0.14A @3V, 0.29A @6V
- No Reducer
- Shaft length: 6.5mm
- Shaft diameter: 2mm
Couldn't load pickup availability
Get it before .
B2B customers can avail ₹3.36 ITC on this product.
Free Shipping over ₹1299.
- Safe Handling
- Faster Shipping
- Easy Return
This is the DC motor, which can be used in any DIY project or in the small toys. With an operating voltage range of 3V-6V this motors can be operated using two AA batteries or with a 5V USB power supply
Features:
- Operating Voltage: 3V - 6VDC
- RPM: 2650 @3V, 5000 @6V
- Free running current: 0.04A @3V
- Free running current: 0.04A @6V
- Stall current: 0.14A @3V
- Stall current: 0.29A @6V
- Length without the shaft: 25mm
- Shaft length: 6.5mm
- Shaft diameter: 2mm
| Model | R140 |
| Input Voltage | 3 - 6V |
| RPM | 2650 @3V, 5000 @6V |
| Free running current | 0.4A |
| Stall current | 0.14A @3V, 0.29A @6V |
| Shaft length | 6.5mm |
| Shaft diameter | 2mm |
| Product Weight | 20 grams |
Country of origin :China
